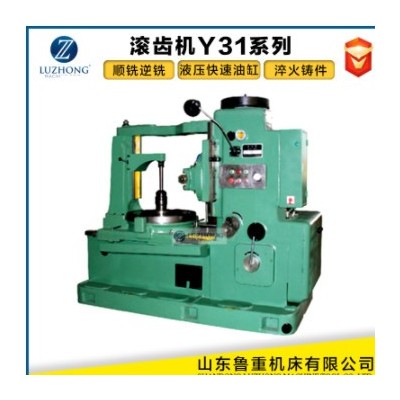

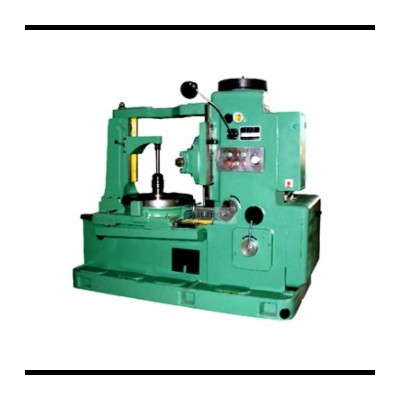

规格参数 | Model | 单位 | Y3180K |
工件最大直径 | Max machining diameter | mm | With rear column 550有后立柱
|
mm | Without rear column 800无后立柱 | ||
工件最大模数 | Max modulus | M=10 | |
800mm最大加工高度 | Max machining height | mm | 320 |
刀具最大直径/长度 | Max tool’s diameter/length | mm | 180/180 |
刀具最大回转角度 | Max swivel angle of tool | ° | ±60 |
刀架垂直快速移动速度 | Tool’s repaid speed vertical | mm/min | 529 |
工作台直径 | Worktable diameter | mm | 650 |
工作台孔直径 | Worktable’s hole diameter | mm | 80 |
工作台电机快速移动速度 | Worktable rapid speed | mm/min | 460 |
主滚刀转速 | main hob speed/grade | r/min | 40-200 / 8step |
工件轴心到刀具架轴心间距离工作台面到 | Distance between workpiece center and tool post center | mm | 50-550 |
工作台面到后立柱移动架轴承端有效距离 | Distance from worktable face to outer supporter bearing head face | mm | 400-600 |
工作台面到刀具轴心间距离 | Distance from hob center to worktable face | mm | 235-585 |
刀具轴向移动量 | Max axial travel of tool | mm | 60 |
主电机功率 | Main motor | kw | 5.5 |
主轴锥度 | Spindle taper | Morse 5 | |
外形尺寸 | Machine size(length× width× height) | mm | 2752×1490×1870 |
机床重量 | Weight | kg | 5500 |
